The Focus Lite 10 is a lightweight, precision halogen heat shrink system engineered for quick, controlled shrinking on small components and tight workspaces. Powered by a commercial-grade quartz halogen bulb, it delivers fast, even heat that activates instantly and produces clean, consistent results.

Designed for bench-top efficiency, the Focus Lite 10 supports shrink lengths up to 1 inch and workpieces up to 5/8 inch in diameter. Operators get full control through the integrated dimmer switch, adjustable timer, and glare shield, while the foot-pedal activation keeps both hands free for accuracy and speed.

With average polyolefin shrink times of just 2 to 4 seconds and a low energy draw of 146 watts on a standard 125VAC circuit, the Focus Lite 10 offers big performance in a smaller footprint. The unit ships with a 6-foot GFCI power cord and weighs only 20 pounds, making it ideal for portable setups, repair stations, and light production environments.

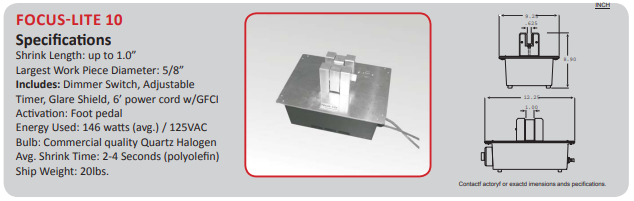

Specifications:
Shrink Length: up to 1.0”
Largest Work Piece Diameter: 5/8”
Includes: Dimmer Switch, Adjustable
Timer, Glare Shield, 6’ power cord w/GFCI
Activation: Foot pedal
Energy Used: 146 watts (avg.) / 125VAC
Bulb: Commercial quality Quartz Halogen
Avg. Shrink Time: 2-4 Seconds (polyolefin)
Ship Weight: 20lbs.
