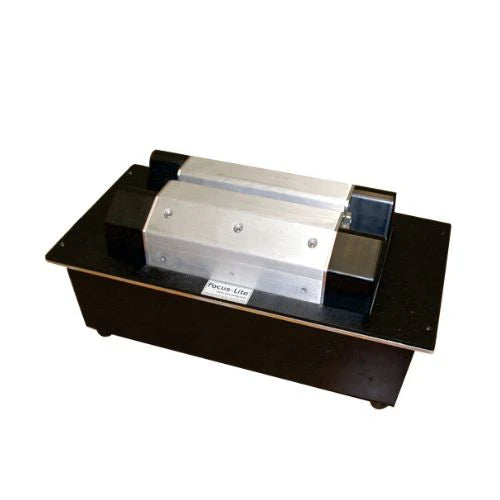

The Focus Light™ 80 is a powerful, extended-length halogen heat shrink machine designed for larger assemblies and long-run production environments. Built around a commercial-grade quartz halogen bulb, it delivers clean, even heat across a broader working area, giving operators the ability to shrink tubing up to 8 inches in length with precision and consistency.

Supporting workpieces up to 5/8 inch in diameter, the Focus Light™ 80 offers full control through an integrated dimmer switch, adjustable timer, and glare shield. Foot-pedal activation keeps both hands free for placement and alignment, making it ideal for harness builders, electronics assembly, and any workflow where efficiency and accuracy matter.

With average polyolefin shrink times of 2 to 4 seconds and an upgraded 300-watt power profile on a standard 125VAC circuit, the Focus Light™ 80 delivers fast response and stable thermal output. The unit ships with a 6-foot GFCI power cord and weighs 40 pounds, built for durability and continuous use in demanding shop environments.

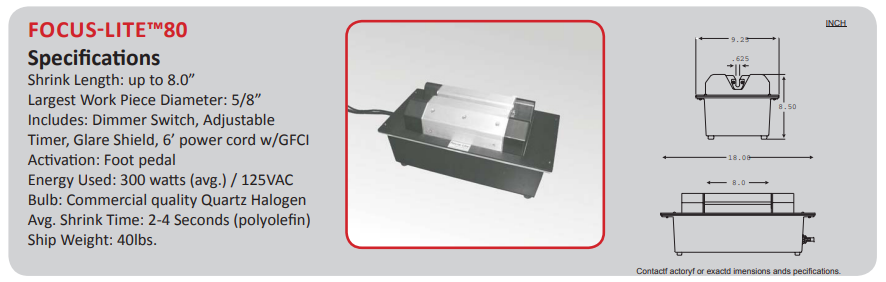

Specifications:
Shrink Length: up to 8.0”
Largest Work Piece Diameter: 5/8”
Includes: Dimmer Switch, Adjustable
Timer, Glare Shield, 6’ power cord w/GFCI
Activation: Foot pedal
Energy Used: 300 watts (avg.) / 125VAC
Bulb: Commercial quality Quartz Halogen
Avg. Shrink Time: 2-4 Seconds (polyolefin)
Ship Weight: 40lbs.
